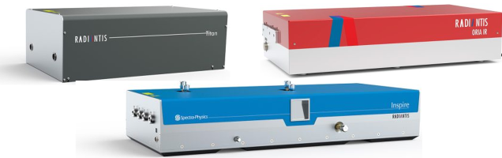

RADIANTIS

Download Catalog

● CW Laser systems

Continuous Wave laser systems with integrated pump laser and OPO. Hands-free wavelength tuning in the Near-IR and Mid-IR across 1450 - 4000 nm with superior power and stability.


▶ Key Features

- Wide wavelength tuning across 1435 – 4138 nm (6969 – 2416 cm-1)*

- High output power with >4 W at the peak of the range

- Excellent beam pointing stability with wavelength

- TEM00 spatial profile

- Hands-free operation with dedicated control software. Control drivers available

- Sealed, compact, and virtually maintenance-free

- Spectral monitoring with integrated spectrometer

Tuning range

Average power

- Signal wavelength: 1435 - 2000 nm

- Idler wavelength: 2270 - 4138 nm

- Pump wavelength: n/a

- SHG wavelength: n/a

- Signal average power: >2.5 W

- Idler average power: >4 W

- Pump average power: n/a

- SHG average power: n/a

- Pulse duration: Continuos-Wave

- Integrated pump: Yes



● Optical Parametric Oscillators - OPOs

Femtosecond OPOs pumped by mode-locked Ti:Sapphire lasers. Hands-free rapid wavelength tuning in the Visible, Near-IR and Mid-IR gap-free across 340 - 4000 nm.


▶ Key Features

- Gap-free tuning across the UV, Visible and IR [345 – 2500 nm (4000 – 28985 cm-1)] with a single configuration and without any change of optics.

- Fully-automated computer-controlled tuning and self-calibration.

- Simultaneous UV, Visible and IR beams available through 3 separate output ports.

- Integrated Second Harmonic Generation Unit for doubling the un-depleted pump.

- Ultrashort Pulses (typ. 180 fs) at 80 MHz.

Inspire Femtosecond OPO

ORIA IR Femtosecond OPO

Tuning range

Average power

Tuning range

Average power

Signal wavelength: 490 - 750 nm

Idler wavelength: 930 - 2500 nm

Pump wavelength: 690 - 1040 nm

SHG wavelength: 345 - 520 nm

Signal average power: 350 mW

Idler average power: 170 mW

Pump average power: n/a

SHG average power: 1100 mW

Pulse duration: Femtosecond

Integrated pump: No

Signal wavelength: 1000 - 1580 nm

Idler wavelength: 1696 - 4090 nm

Pump wavelength: 690 - 1040 nm

SHG wavelength: n/a

Signal average power: >1 W

Idler average power: >350 mW

Pump average power: n/a

SHG average power: n/a

Pulse duration: Femtosecond
